MDP185HD

MATO DROP-ON HEAVY DUTY PRIMARY CLEANER

MDP185HD

MATO DROP-ON HEAVY DUTY PRIMARY CLEANER

The MDP range of Drop-on Primary Cleaners are the simplest primary cleaners available on the market, with their easy compression spring application for constant tensioning and reducing the need for adjustment. Quick and easy blade replacement by removing the blade locking pin. The MDP range of Polyurethane Primary Cleaners are manufactured with a unique self-lubricating blade to reduce friction and blade wear.

Key specifications
Blade Material
PU 85A Shore
Head Pulley Diameter
250mm - 900mm
Belt Width
300mm - 2000mm
Belt Speed
Up to 3.5m/sec
Suitable for Reversing Conveyors
Yes
Suitable for
Corrosive Conditions
To submit an enquiry for this product, first select your required end assembly:
Select end assembly(Required)
mdp235 cs1
mdp235 cs2

Features

  • Reduces the amount of carry back material
  • Reduces material spillage to minimise clean up work
  • Reduces the potential hazard of belt mis-tracking
  • Complete cleaning systems

Benefits

  • Increase conveyor belt life
  • Increase production time due to excessive spillage
  • Protection against wearing components on the conveyor line
  • Works with MATO and other brand mechanical fasteners

General arrangement drawings

Explore other Products

Need more information or help choosing the right Product?

Contact our Belt specialists and they will be happy to help you find what you need.
vector

MDP185HD

This product has been added to your enquiry list

vector

Thanks for your enquiry

Our team will be in touch soon to help keep your
conveyors moving.

End Assembly options

mdp235 cs1

CS1

The CS1 End assembly is a Angle Mounted Bracket arrangment which is more for a fixed design.

mdp235 cs2

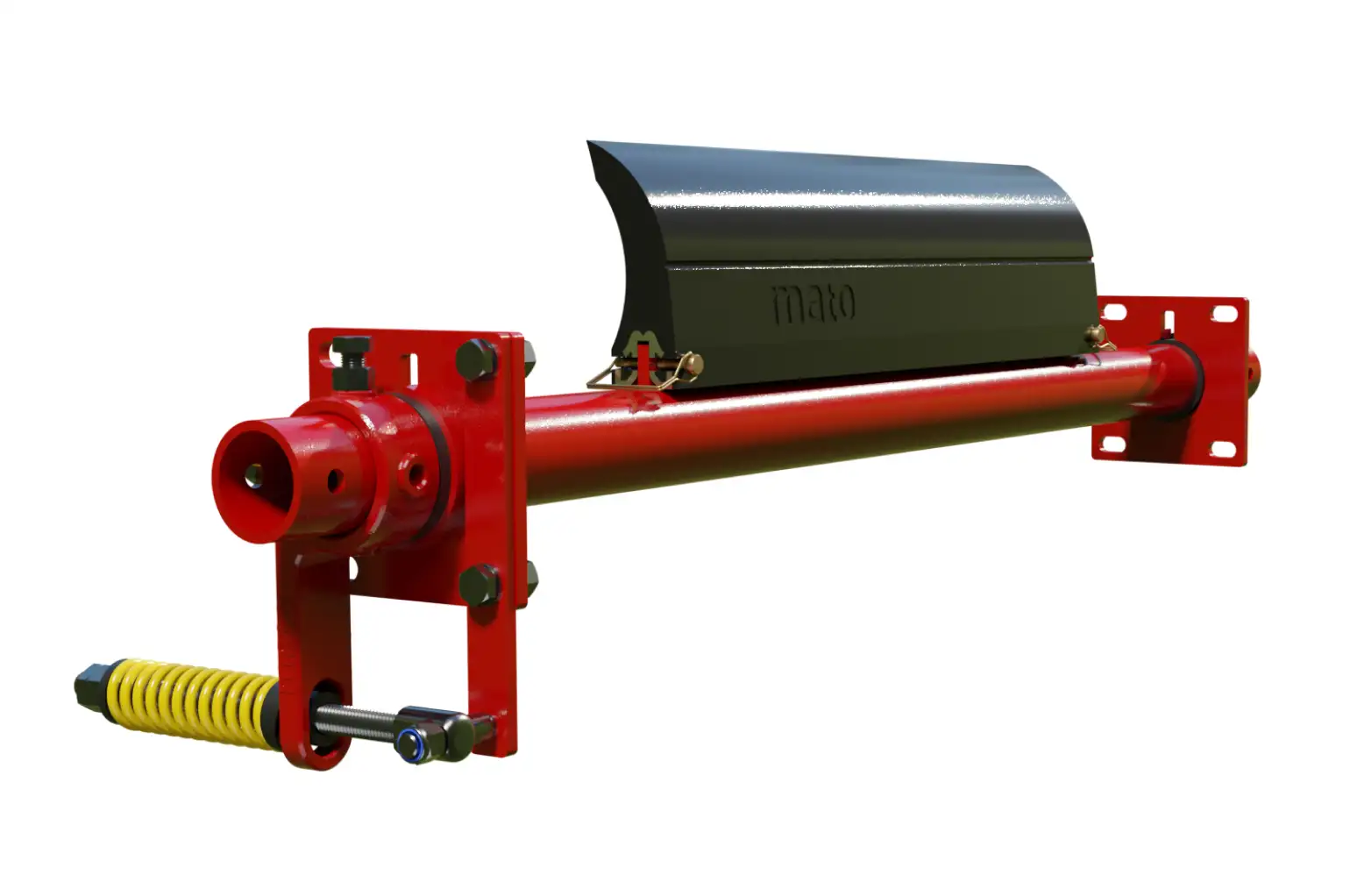

CS2

The CS2 End assembly is a plate mounted system which allows for the compression spring to be position in 1-4 settings pending on what other items that may interfer in the design of the conveyor, given more flexibility within the installation.
